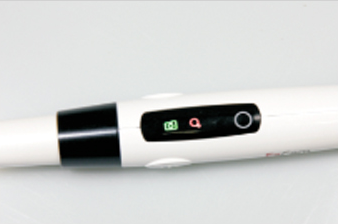

Key Features

Smart
  • Get clear image through auto-focus function
  • Reduce image distortion using aspherical lens
Simple
  • Light and slim design
Easy
  • Automatic on/off control and viewer connection

Samples using by aspherical lens

Provide optimal diagnosable images and make your patient understand better

alt

Instructions for TWAIN Driver Integration

How to integrate your imaging software with EzCam using TWAIN driver.
Please be informed that the installation of TWAIN driver is not a necessary step. You only need to install it when it is required.


Step 1 – Plug in the EzCam to your PC.

  • Then your PC will recognizes the EzCam camera and you can see a small alert on the bottom saying that
    new Hardware(EzCam) "USB Video Device" was recognized.

  • Make sure that you plug the USB connector into a USB port, which supplies enough power. It is recommended to connect to the USB port on the back of the PC, as the USB port on the front of the PC or on the monitor may sometimes has insufficient power, since it is connected by a thin wire from the main board.


Step 2 – Download & install TWAIN driver file



Step 3 – Launch Imaging Software and acquire clinical image using TWAIN driver

  • After launching your imaging software and at the acquisition process, you will find our TWAIN driver named as "EzCam_TWAIN".
  • Click the TWAIN driver and open the TWAIN capture window.
    alt
  • Pressing the capture button on the camera will take a photo and save it to the patient chart.

※ Please contact sales@vatechmcis.com for additional support.

Specifications

Image sensor CMOS/5 Mega pixel
Resolution 1280x720
Light source 2 White LEDs
Focus range 9mm-35mm
Angle of view 62º
Length of cable USB2.0 / 3m (Option:5m)
Dimensions 198 x 24 x 23mm
Weight 40g
Operation Voltage DC5V/500mA

※ The specifications are subject to change without prior notice.
